11.05.2023
International
Aumund Fördertechnik, Rheinberg, Germany, has developed a special cleaning and sorting conveyor for Hawle Guss, Fürstenwalde, Germany, and put it into operation in August 2022.
Hawle Guss requires the appropriate conveying technology for its new concept for degating, sorting and cleaning of castings at the foundry. The function of the Conveyor supplied in 2021 by Aumund is purely to transport material from the manufacturing plant in the basement on to the next process stage on the ground floor. In August 2022, as part of the next stage of expansion, a Cleaning and Sorting Conveyor was commissioned. This Conveyor had been specially developed for the application, and replaced the previously utilized vibrating conveyor.

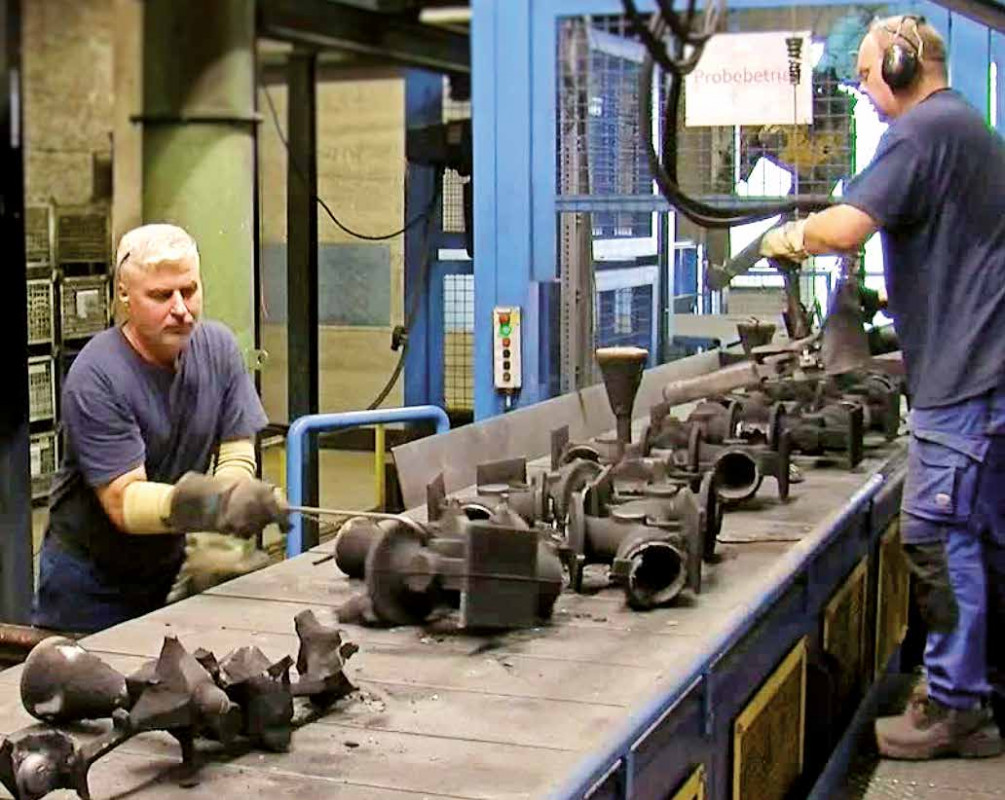

Aumund and the customer worked closely together to come up with the concept for a tailor-made solution which resulted in the development of a completely new Cleaning and Sorting Conveyor with an overall length of 11.45 m and an operational area of 8 m. According to the company the previous heavy exposure to noise and vibration was almost completely eliminated and at the same time a reduction in energy consumption. The flat surface provides a comfortable working height for sorting and cleaning the castings without danger of obstruction. The design of the conveyor plates was optimized to avoid any cracks at the edges, and to enable the castings to be ejected sideways.
At the same time a degree of mechanical stability could be achieved which is sufficient to enable operation with a manipulator. Because of the high tensile strength of the plates, impact loads of up to approx. 2.5 t can be tolerated without causing any deformations. The Conveyor was designed in such a way that all key structural components could be housed internally. With vibratory technology and hydraulic components no longer required, all advantages of a simple and reliable mechanical conveying equipment are at the forefront.
